CAE350S Air Compressor Efficiency Analysis System

Have reliable and accurate measurement on compressed air to improve cost saving.
Want to know more?
Comate CAE350S Datasheet
Download Preview
Comate Smart Sensors

CAE350S compressor Analyzing System is Comate Intelligent Sensor’s latest solution specially designed for analyzing the performance of compressor.

The system integrated flow meter (humidity sensor built inside), pressure sensor, power meter through pad APP and Bluetooth communication technology.

Users will be able to read not only the standard flow rate, FAD flow rate, pressure, power consumption and efficiency, but also load/off loading times, unit power (power consumption per unit of compressed air), and power ratio (power efficiency under a certain productivity of compressed air).

Comate Smart Sensors

1 year warranty and Lifetime Technical Support

Compressor analyzing system

CAE350S

TGF350S flow meter, receiver data from power meter and transfer all data to cell phone through Bluetooth.

CAE350S do not have traditional display and setting system. To read or set the system, customer only need to use an PAD installed COMATE APP.

All the hardware ingredients in the system will transfer date to TGF350 flow meter and the flow meter will communicate with cell phone / pad. Anyone can easily read the date or set the system.

The APP can also generate an detailed report with curve diagram to help customer to understand the condition of the compressor better or even compare the tested compressor with another compressor.

Thanks for the compact design of the system, users are able to bring the whole system anywhere with only a simple wheel box provided by Comate. Engineers or sales person will be able to bring only one wheel box to check the performance of most of the compressor accurately and efficiently

features

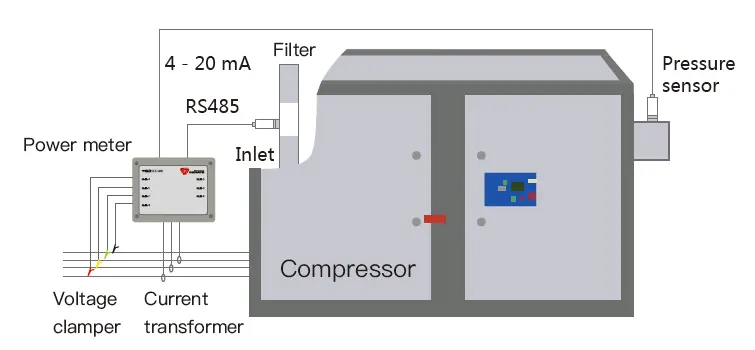

System Components

  • TGF350S inlet air flow meter TGF350S inlet air flow meter is designed base on thermal diffusion theory, can measure the mass flow rate, standard flow rate and FAD flow rate in a 70:1 range with 2% accuracy.
  • Pressure sensor CAE350S system also include a pressure sensor which can be installed on the pressure tap of the compressor. The pressure sensor will output analog signal for pressure value to flow meter, so the system can compare the efficiency of the compressor under different pressure.
  • Power measurement components One KW110 power meter, 3 current transformers and 4 voltage clampers are the power measurement components in CAE350S
    system. KW110 gather current and voltage date from the other two components through RS485 and transfer all data to TGF350 flow meter also through RS485. Also, KW110 is the only component that is needed to be plugged to a power source and it will provide power for the whole system.
    The power measurement components can be used in both 3 phase 3-wire and 3 phase 4-wire power system, with 1% accuracy in a 5~500A range. All components can be read and set through cell phone / pad APP.
  • COMATE APP CAE350S system can be read and set on a PAD through blue tooth technology, by installing COMATE APP.The setting dates are saved in flow meter separately, but all measurement dates are saved in TGF350S flow meter, which is the only component in CAE350S system that can built connection with the pad. Even when the pad is out of the range of the blue tooth of TGF350S, TGF350S itself can save 24 hours measurement date in built-in FRAM. So once a cell phone/ pad connect with the system again, it can read the data of latest 24 hours.
    Through the help of Comate Flow Meter APP, customer can operate the system very easily with almost 0 training after registration and understanding some basic terms of the system.
