CAE820 Compressed Air Network Auditing System

Have reliable and accurate measurement on compressed air to improve cost saving.
Want to know more?
Comate CAE820 Datasheet
Download Preview
Comate Smart Sensors

Comate Compressed Air Monitoring System is a on-line monitoring system with a remote data server to save all data and a website to show all data.

Any COMATE flow meter or other items can upload data to the remote data server. Customer can logging the website with their unique ID and password to check current measuring data and history data.

The website will also provide curve graphic of all available data for customer to compare and know the tendency The English of this system will be on-line soon enough.

Comate Smart Sensors

1 year warranty and Lifetime Technical Support

Compressed air auditing system

CAE820

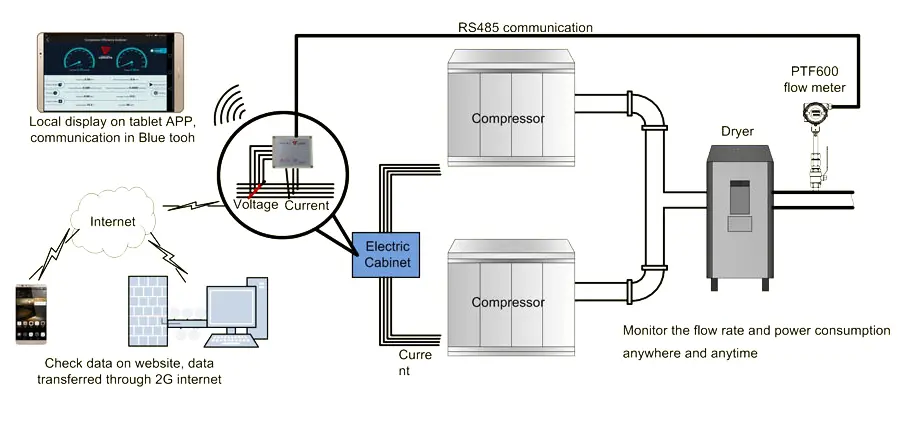

CAE820 compressed Air Network Auditing System is specially designed for analyzing the performance of single compressor or compressor group.

The system integrated flow meter (temperature and pressure measurement inside), power meter through tablet APP and Bluetooth communication technology.

Users will be able to read not only the standard flow rate, FAD flow rate, pressure, power consumption and efficiency, but also load/off loading times, unit power (power consumption per unit of compressed air), and power ratio (power efficiency under a certain productivity of compressed air).

CAE820 do not rely on traditional display and setting system.

To read or set the system, customer only need to use an tablet installed COMATE APP. All the hardware ingredients in the system will transfer date to flow meter and the flow meter will communicate with cell phone / pad.

Anyone can easily read the date or set the system. The APP can also generate an detailed report with curve diagram to help customer to understand the condition of the compressor better or even compare the tested compressor with another compressor.

The power meter can also upload the measurement data to COMATE compressor monitoring system website. So if the audit take long time, customer do not have to stay at site, but can check the data anywhere by logging the website.

features

System Components

  • PTF600 pitot tube flow meter set CAE820 has one PTF600 pitot pipe flow meter.PTF600 is COMATE’S latest compressed air flow meter base on different pressure principle designed for both dry and wet air. PTF600’s can measure a flow range of 32:1 with 1%RD + 0.5%FS accuracy. The min and max flow are base on the pressure and pipe size.
  • Power measurement components One KW110M power meter, 3 current transformers and 4 voltage clampers are the power measurement components in CAE820 system. KW110M gather current and voltage date from the other two components through RS485 and flow rate, temperature, pressure data from PTF600 flow meter. It can communicate with tablet through blue tooth or update data to COMATE Compressor Monitoring System website for customer to review. The power measurement components can be used in both 3 phase 3-wire and 3 phase 4-wire power system, with 1% accuracy in a 5~500A range.
  • COMATE APP CAE820 system can be read and set on a tablet through blue tooth technology, by installing COMATE APP. The APP can control the start and the end of a test, when the test stop, the APP will ask if need to save the data. Once the data saved on APP, customer can check it anytime later, and generate a very detailed report with curve diagram. Customer can send the report to mailbox once connected the PAD to internet.
    Through the help of Comate Flow Meter APP, customer can operate the system very easily with almost 0 training after registration and understanding some basic terms of the system.
  • Comate Compressor Monitoring System Comate Compressor Monitoring System is a on-line monitoring system with a remote data server to save all data and a website to
    show all data.
    Any COMATE flow meter or other items can upload data to the remote data server. Customer can logging the website with their unique ID and password to check current measuring data and history data. The website will also provide curve graphic of all available data for customer to compare and know the tendency The English of this system will be on-line soon enough.
