VFM60MV Multivariable Vortex Meter For Gases, Air

Have reliable and accurate measurement on compressed air to improve cost saving.
Want to know more?
Comate VFM60 Datasheet
Download Preview
Comate Smart Sensors

The change of pressure and temperature has great effect on the volume of air and gases.

Thus it is very important to bring a flow meter technology with both temperature and pressure compensation to get accurate measurement result of fluid.

VFM60MV multivariable vortex meter applied for industrial gases, compressed air standard flow or mass flow measurement

Comate Smart Sensors

1 year warranty and Lifetime Technical Support

Process Fluids

Used in liquid, gas, and steam applications. Fluids must be homogeneous and single-phase.

Line Sizes

The wafer and flanged type cover line sizes as below. 0.5", 0.75",1", 1.5", 2", 2.5", 3", 4", 5", 6", 8",10" ,12", (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300) The insertion type covers DN300~1000.

Process Connection

Flange, wafer, insertion, ANSI, JIS, DIN Standard flanges are optional for flanged connection

Displayer

Integral or remote.3 buttons control. 2 lines LCD displayer. 1st line has 5 digits to display mass flow or volume flow or frequency or temperature or pressure 2nd line has 8 digits to displayer total flow A small extra line above 1st line will indicate what parameter being displayed in 1st line.

Measurable Parameter

Standard version: Volume flow rate in pipe (Can measure mass flow rate, temperature and pressure if wired to separate RTD and pressure transmitter.) Multi-variable version: Mass flow rate, volume flow rate in standard condition, temperature, pressure, volume flow rate in pipe, velocity.

Output Signal

Pulse, high level ≥ 5V, low level < 1V，50% duty ratio 4~20mA (HART@4~20mA) ModBus-RTU RS485

Pressure Allowance

1.6MPa (232 psiG)、2.5MPa (362 psiG)、4.0MPa (580 psiG)、6.3Mpa (913 psiG) for option
Vortex Flow Meter

VFM60MV

VFM60 is a powerful flow meter utilizing “Karman vortex” theory, which can meet the requirement of measuring the flow rate of various fluids such as gas, steam and liquid.

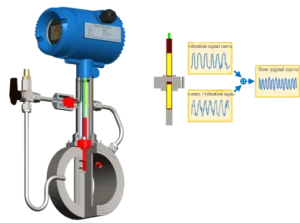

Anti-vibration

VFM60 vortex flow meter have a patent dual-sensor design and is using our latest VPA60 transmitter, which enable it to detect and eliminate vibration signal, and provide with best anti-vibration performance.

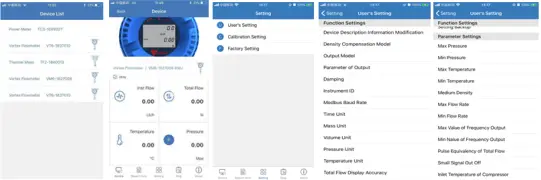

Bluetooth operating

  • Parameter & Function setting via Comate bluetooth app
  • Setting auto crosschecking on PHM system
  • Flow signal & data analysis
  • Remote diagnosis

features

Key Sensor Features

  • Extremely high sensitivity, minimum flow rate down to 2m/s
  • 1:35 super wide turndown ratio
  • Unique dual sensor technology excellent in anti-vibration
  • Multi-variable flow meter, measures flow rate, temperature , pressure, FAD measurement available
  • No moving parts, very small pressure loss
  • Calculate the density and mass flow without any separate sensor
  • Density compensation function available, do not need flow computer for mass flow Password protecting function and self-diagnose function
Comate VFM60 Datasheet
Download Preview
